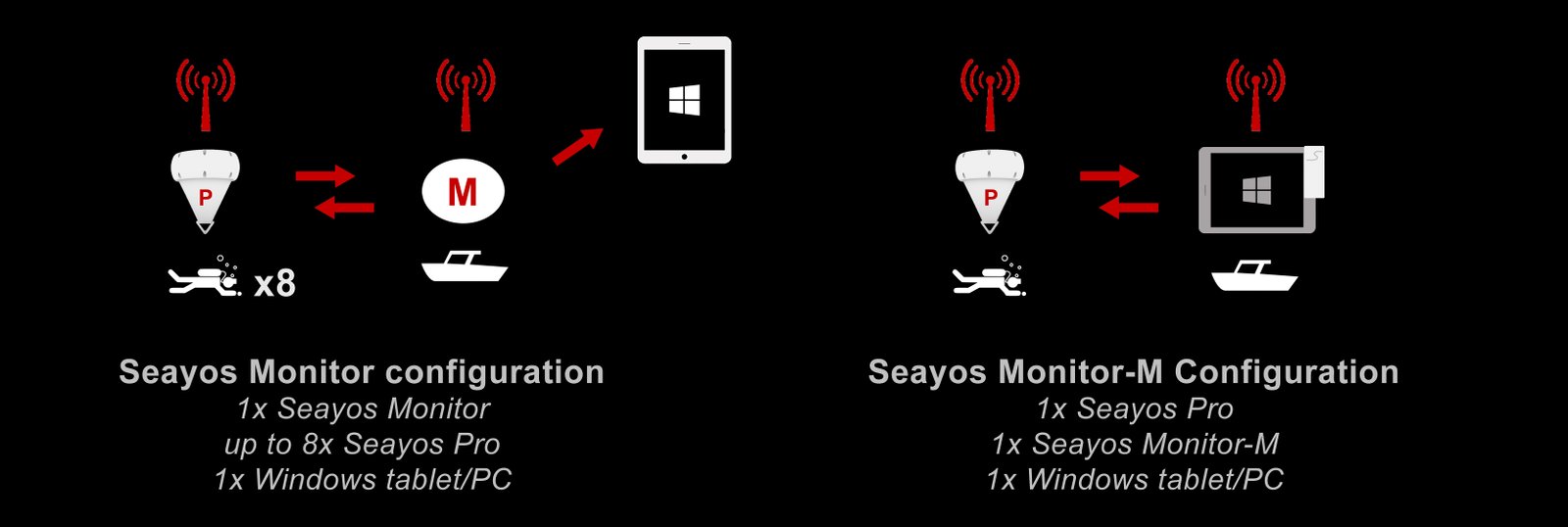

The SEAYOS Monitor and SEAYOS Monitor-M comprise a transceiver unit (typically installed on the boat) communicating with:
- one (or several in the case of the SEAYOS Monitor) SEAYOS carried by a diver ;
- a tablet (or a computer) enabling the surface observer to have an enhanced interactive display and an exchange of (individualised in the case of the SEAYOS Monitor) messages.
They also give divers up-to-date information on the boat's position (particularly useful for drift dives).
The enhanced interactive display is carried out via the SEAYOS Monitor interface (identical to that supplied with the SEAYOS Pro-M), which also offers other functionnalities such as direct data transfer during a dive to GoogleEarth, accessing the exchanged messages log, recording the current session, importing sessions already carried out, etc.
The SEAYOS Monitor and SEAYOS Monitor-M differ from the rest of the SEAYOS range in that, unlike our other products, they cannot be used underwater and independently of one (or more for the Monitor-M) SEAYOS Pro.

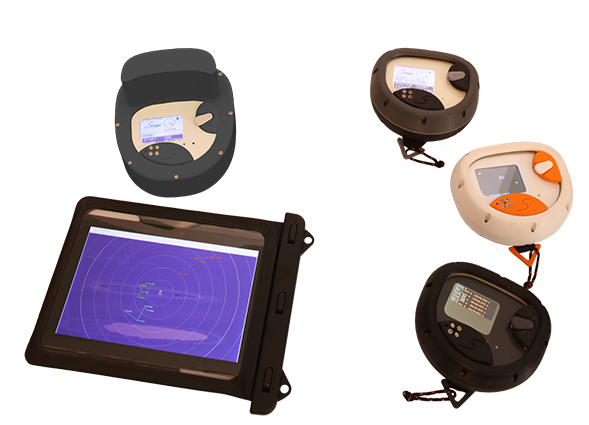

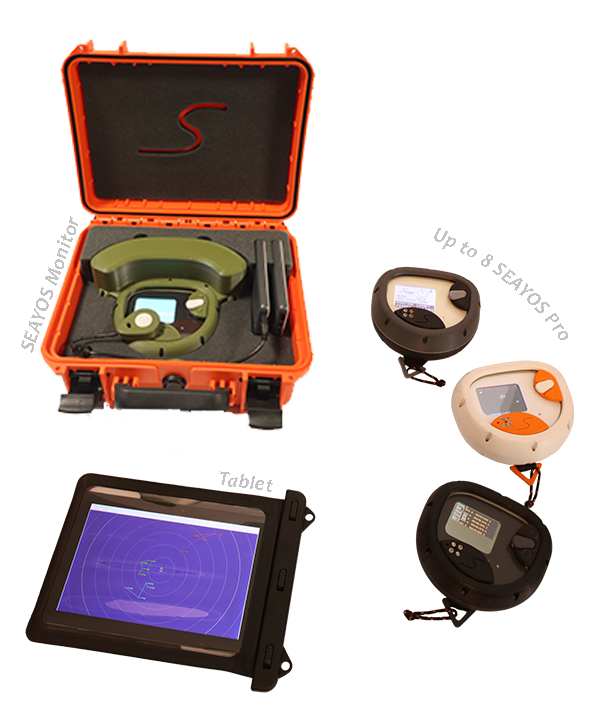

SEAYOS MONITOR
The SEAYOS Monitor allows simultaneous tracking of multiple divers equipped with SEAYOS Pro.
Features of the SEAYOS Monitor
- Outer dimensions: 220 x 180 x 100 mm- Weight: 1150g
- Radio frequency band used: 868 MHz, with data security protocol
- SEAYOS Monitor - tablet communication: Bluetooth
- Positioning: absolute (WGS 84)
- Constellations: GPS, Galileo, GLONASS and Beidou
- Integrated compass
- Charge by USB cable
- Comes with SEAYOS Monitor PC/tablet interface (Windows only)
Main functionalities
- Centralised and secure communication between divers and the surface (transmission of acquired data, exchange of messages)- Recording of of three-dimensional positions (geodetic coordinates and depth)
- Map backgrounds management
- Guiding function towards a diver
- Dive log
- Favourites creation and import/ export of .kml, .gpx and .txt files
- Automatic transfer of collected data to Google Earth

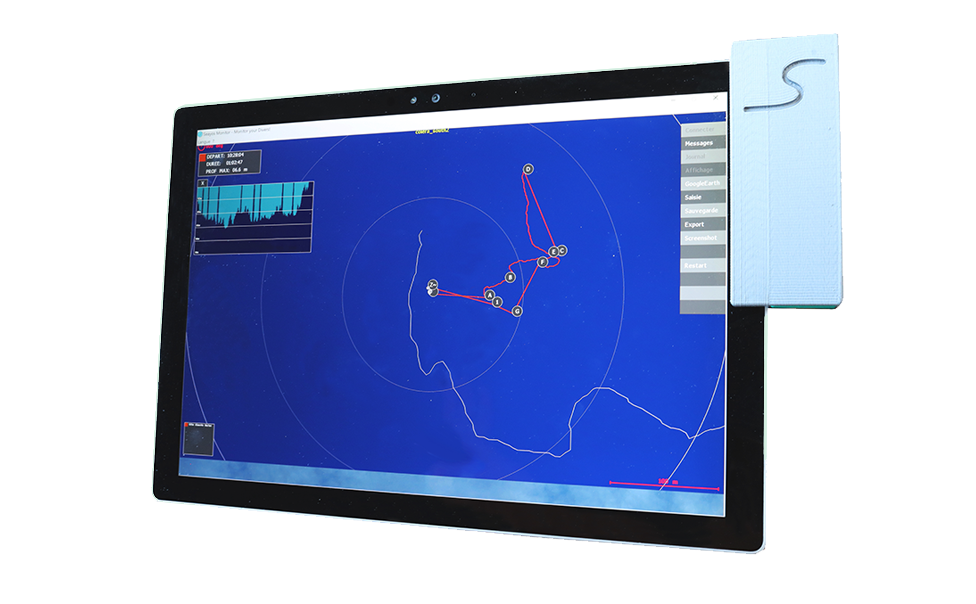

SEAYOS MONITOR-M
The SEAYOS Monitor-M can only track one diver (equipped with a SEAYOS Pro) at a time, but it is more compact and economical than the SEAYOS Monitor.
Features of the SEAYOS Monitor-M
- Plugs into the USB port of a tablet or PC- Outer dimensions: 109 x 42 x 17 mm
- Weight: 60g
- Integrated GNSS: GPS, Galileo, GLONASS, and Beidou constellations
- Radio frequency band used: 868 MHz, with data security protocol
- SEAYOS Monitor-M - tablet communication: Bluetooth
- Positioning: absolute (WGS 84)
- Charge by USB cable
- Comes with SEAYOS Monitor PC/tablet interface (Windows only)
Main functionalities
- Secure communication between one diver and the surface (transmission of acquired data, exchange of messages)- Recording of of three-dimensional positions (geodetic coordinates and depth)
- Map backgrounds management
- Guiding function towards a diver
- Dive log
- Favourites creation and import/ export of .kml, .gpx and .txt files
- Automatic transfer of collected data to Google Earth
